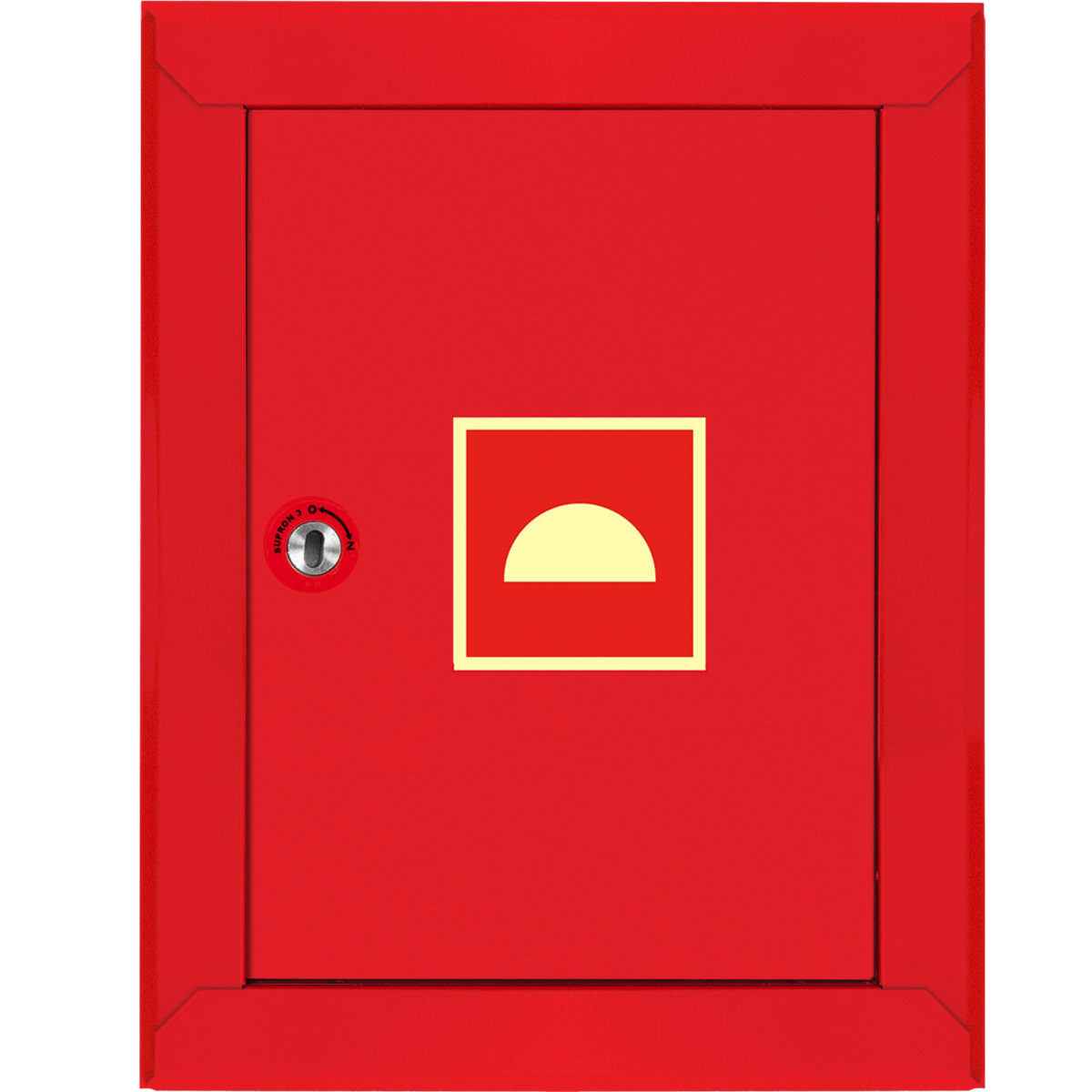

Cabinet enabling installation of a fireman’s connection – one or two fire bases 75 or 2 × 75/110 collector.

dwg pdf jpg ppt xls doc png zip txt svg file

Files to download

Files to download

Standard execution:

  • Cabinets made of zinc galvanized steel sheet, lacquered with Facade type polyester powder paint. Cabinet without the back wall. The standard color is red (RAL 3000) and white (RAL 9003).
  • OTS lock – opened by the fireman’s ax in the case of valves provided for in the Regulation of the Ministry of Interior and Administration from June 7, 2010 “on the fire protection of buildings, other buildings and areas”.

Type Symbol Dimensions [mm]
(height x width x depth)
Equipment
(* offered separately)
Mounted on the wall SO-PS-400Z-O 400 x 320 x 220 adapter 75
SO-PS-520Z-O 520 x 390 x 240 2 x adapter 75
or 1 x 110
SO-PS-550Z-O 550 x 550 x 250 2 x adapter 75
or 2 x 110
SO-PS-550Z-350-O 550 x 550 x 350 water collector 2 x 75/110 with swivel attachment
Mounted in recess SO-PS-400W-O 400 x 320 x 220 adapter 75
SO-PS-520W-O 520 x 390 x 240 2 x adapter 75
or 1 x 110
SO-PS-550W-O 550 x 550 x 250 2 x adapter 75
or 2 x 110
SO-PS-550W-350-O 550 x 550 x 350 water collector 2×75/110 with swivel attachment

Possibility of implementation

ikona niestandardowe wymiary

Non-standard dimensions

Possible to adopt dimensions to customer request

Universality

Very easy change of the right / left side water connection by rotating the cabinet by 180°. The connection holes are plugged

Type of lock

OTS lock

Opened by pick-shaped pointed poll of light fire axe
